c.1840 Extremely Rare Helical Geared Month-Going Skeleton Clock

Dial

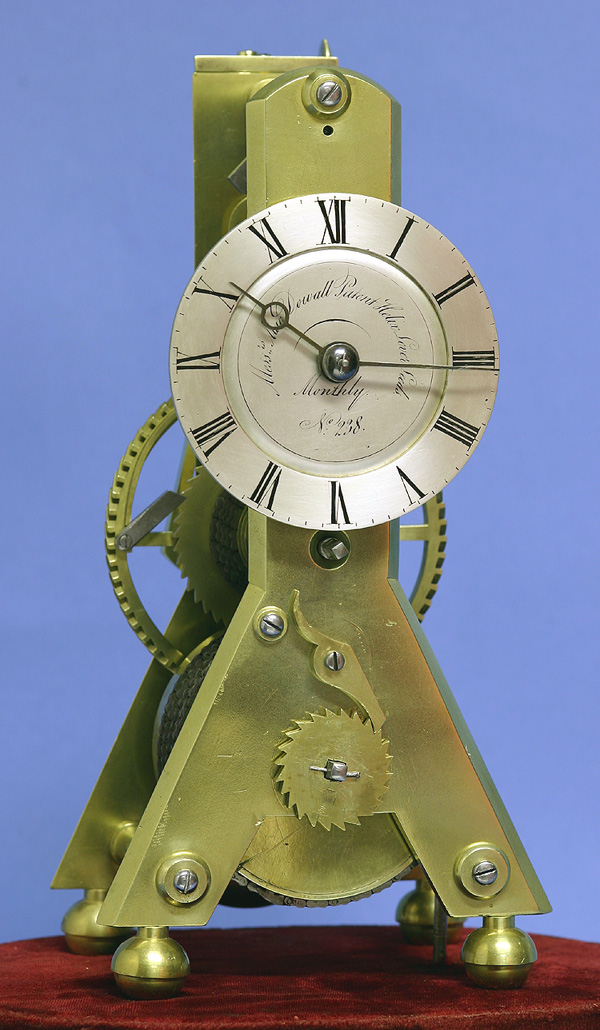

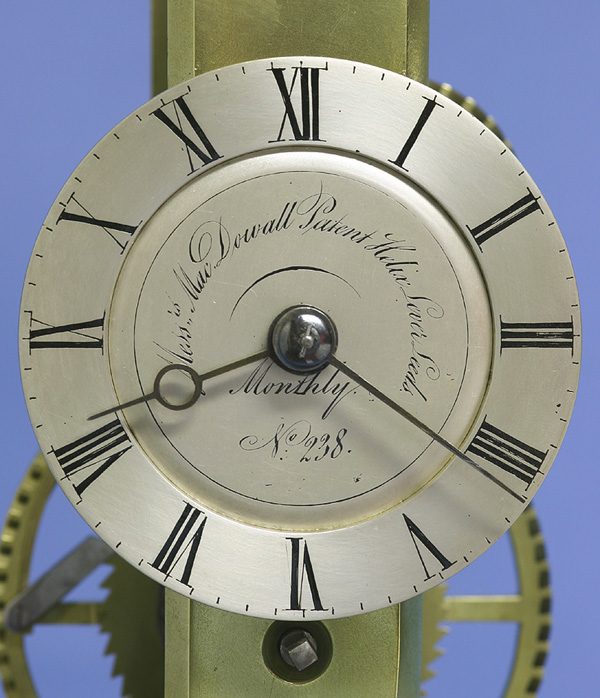

The two piece engraved, silvered dial has Roman numerals for the hours, two nicely cut steel hands and is elaborately engraved in the center, 'Mess's MacDowall Patent Helix Lever Leeds, Monthly, No. 238' .

Movement

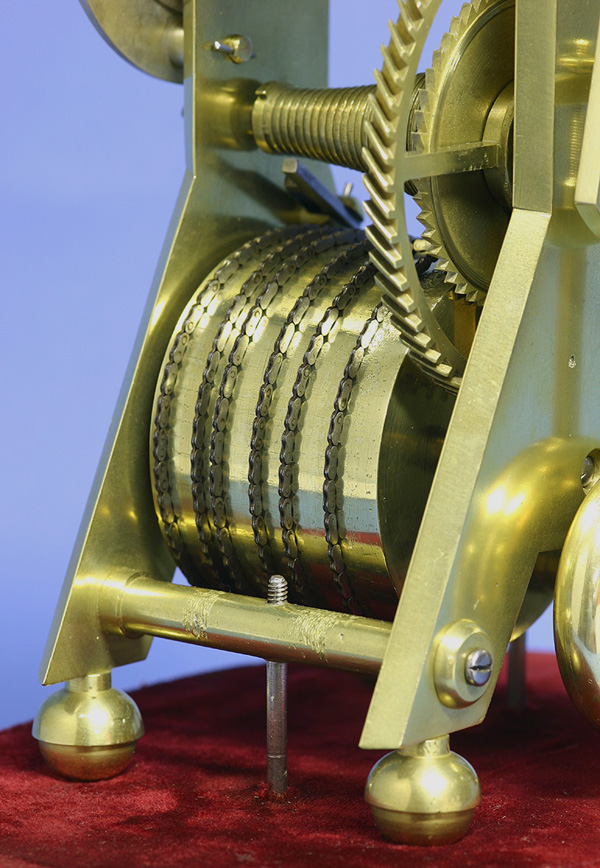

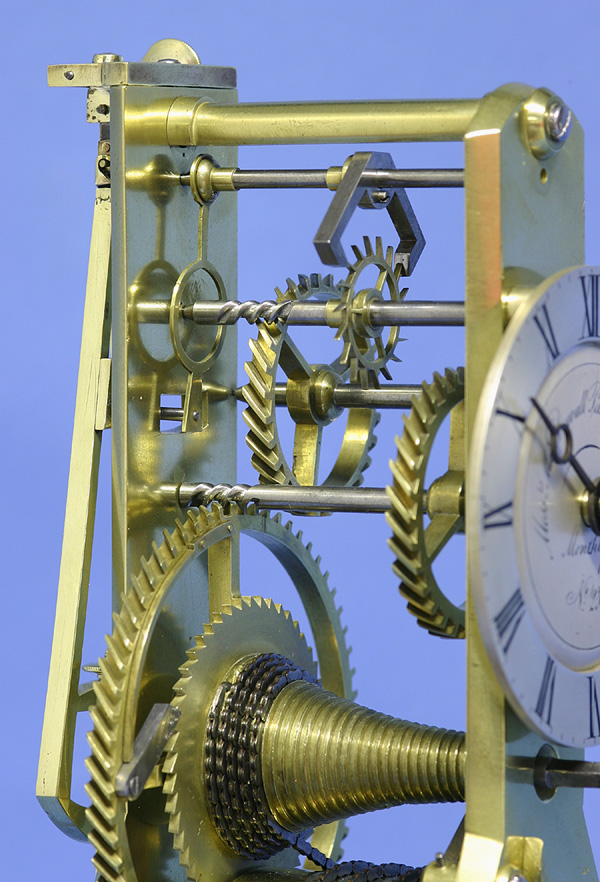

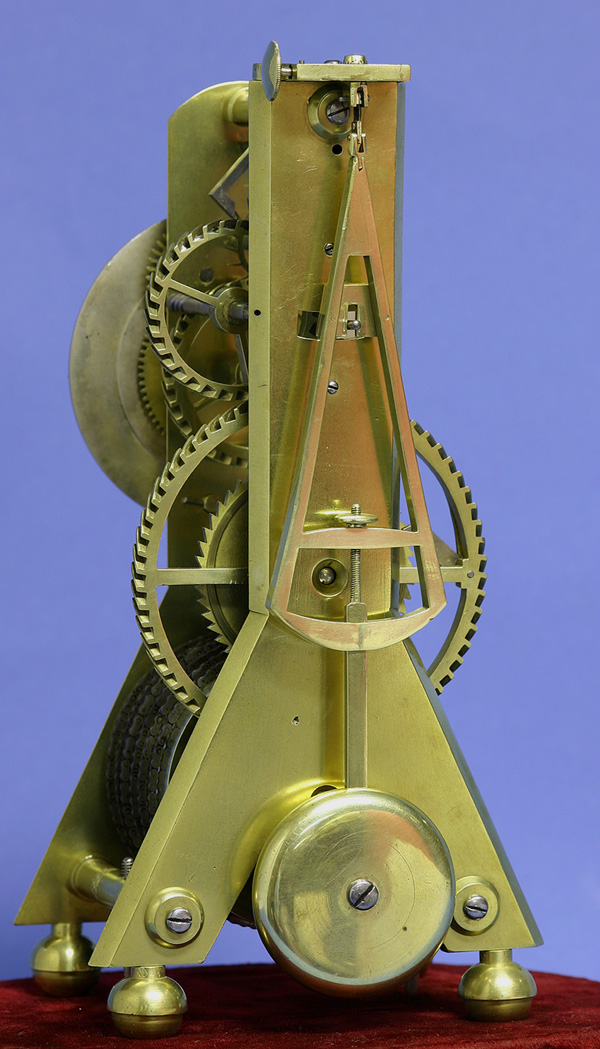

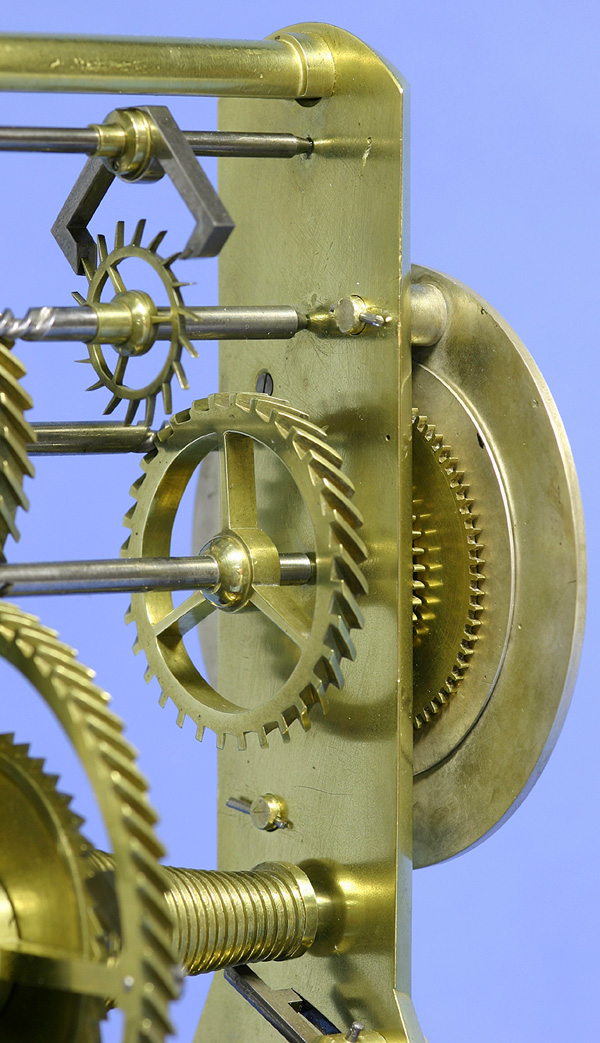

The high quality month running movement has Inverted-Y shaped plates with sharply chamfered edges, three large posts screwed with collets front and rear, a two-piece silvered dial, helical gearing, a dead-beat escapement and a triangular shaped brass pendulum. The four wheel helical geared time-only train has heavy brass three spoked wheels with rounded collets, an unusually elongated fusee with 26 turns, steel screwed end stops on the backplate and a caliper style steel dead-beat anchor that encompasses 6 teeth of an 18-tooth escape wheel. The crutch is fastened by a screwed collet to the anchor arbor and, unlike most clocks, comes down inside the backplate, encircles the next arbor and engages with the pendulum by a steel pin through a cut-out slot in the back plate. The shaped pendulum is suspended from a screwed beat adjustment by a steel suspension spring, is triangular shaped and has a rounded brass bound bob with the rating nut located above.
